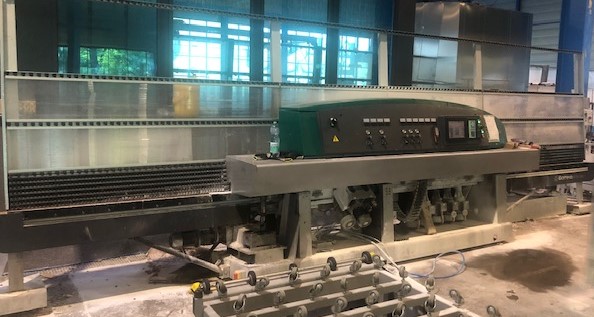

SLI-018 Straight line edger Variant

Category : Edgers - Straight line edger


Technical specifications

Make : Bottero

Type : 810 BC

Year : 2011

Conditions : In production - as it is

Serial Nr : GG810C 19176

Capacity : 27KVA

Description :

This model is suited for customers whose production mainly involves flat edges and arrises, but who from time to time need to produce edges inclined up to 45°.

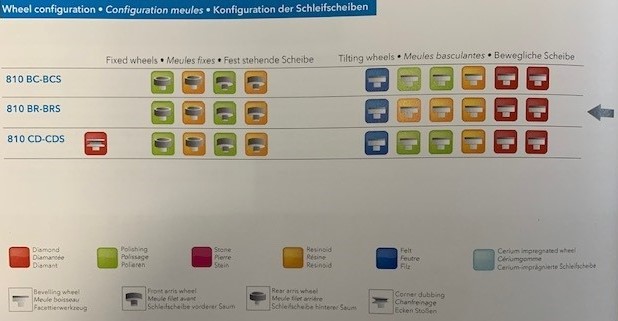

6 wheels on the tilting side and 4 fixed for arrises allow working up to 3 surfaces for each stroke.

Minimum dimension of Glass: 100 x 100mm; Glass thickness 3-55mm; Speed 0,4 up to 6m/min; angle 0-45°.

Installed power 27KVA - Weight from +/-4600Kg
