Technical specifications
Make : Bottero
Type : 551A
Year : 1993
Condition : clean - in production - as it is - cheap

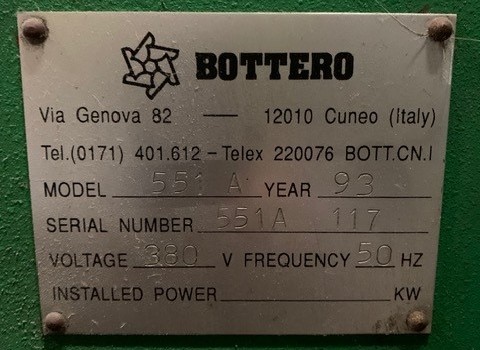

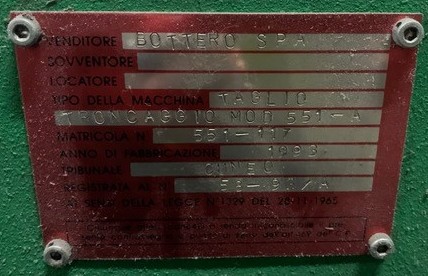

Serial Nr : 551A 117
Capacity : 380V-50Hz-18KVA

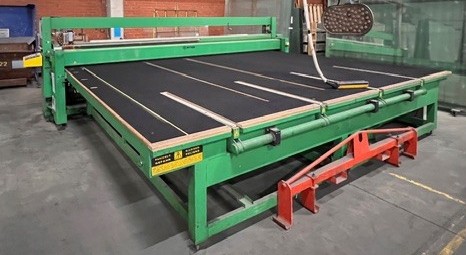

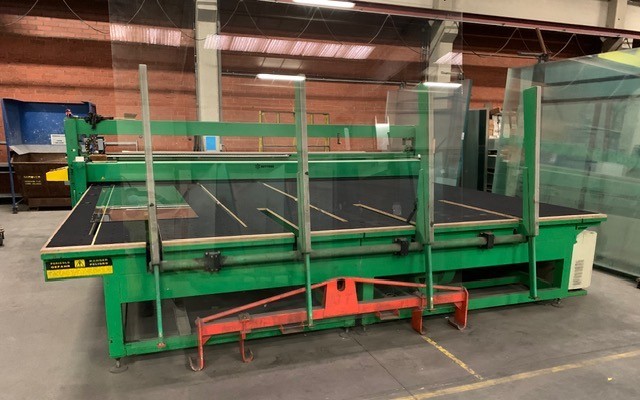

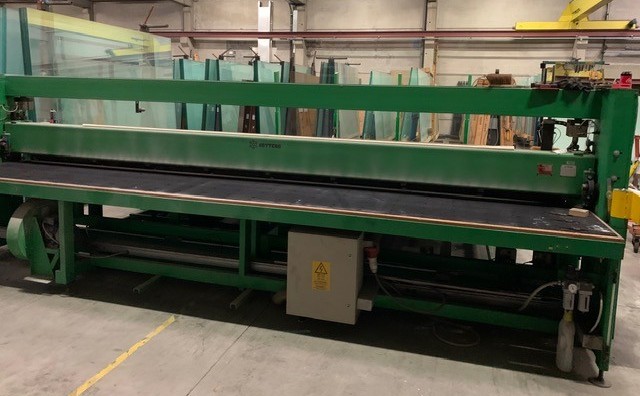

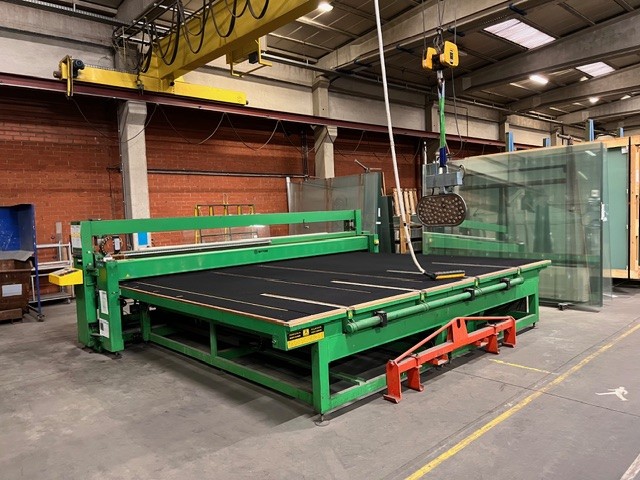

Description : BOTTERO LAMILINEA 551A - Year 1993
Max cut lenght 4600 mm
Air cushion power Minimum 200 mm water column
Thickness range to process Monolithic: 3 - 10 mm
Laminated: 3 + 0.38 + 3 (33-1) minimum 8 + 4.56 + 8 (88-12) maximum
Maximum carriages speed 40 m/min - Max.cutting tolerance +/- 0,5 mm
Overall dimensions 4900 x 6100 mm
Weight 4500 Kg
Working table height Adjustable from 900 up to 940 mm
Installed Power 18 KVA
Compressed air max. consumption 500 NL/Min
